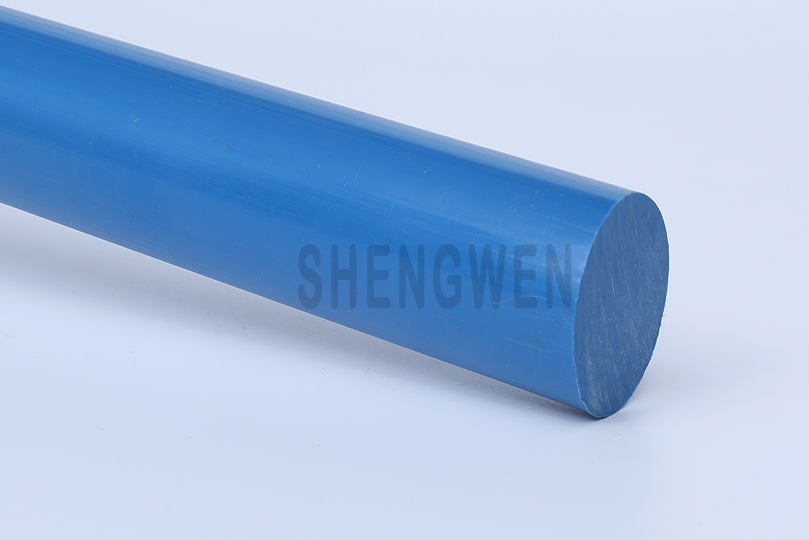

PPSU Rod Blue

  • 1. Exceptional resistance to hydrolysis
  • 2. Superior impact resistance strength with 690J/m
  • 3. Dimensional stability at high temperature
  • 4. Good chemical compatibility
  • 5. Inherently flame retardant
  • 6. Colorable

Share this:

Overview :

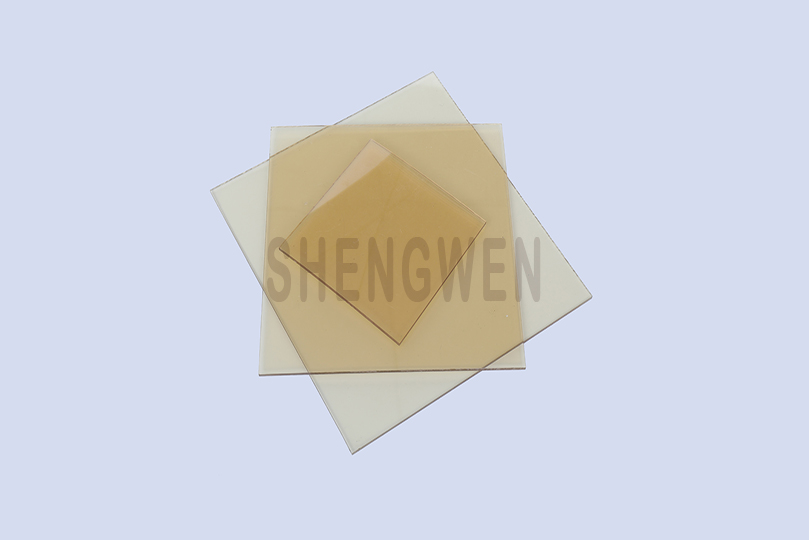

In addition to natural PPSU semi-finished products, we also provide color matched PPSU rod and PPSU board. Color matched PPSU rod and plate also provide dimensional stability at high temperature and superior mechanical strength. They also provide excellent resistance to hydrolysis and suitable for repetitive steam sterilization. PPSU rod and board are usually used in applications where components are required to operate at higher temperatures or harsh conditions. Due to PPSU is colorable, PPSU rod and PPSU plate can be in other colors as your demands, such as blue, yellow, red, black, and so on.



General Dimensions of PPSU Rod

DIAMETER (mm) LENGTH (mm) TOLERANCE MAX (mm) WEIGHT  (KG/M)
6 1000 +2 0.07
8 1000 +2 0.10
10 1000 +2 0.15
15 1000 +2 0.30
20 1000 +2 0.50
25 1000 +2 0.75
30 1000 +2 1.05
35 1000 +2 1.41
40 1000 +2 1.82
45 1000 +2 2.27
50 1000 +2 2.78
60 1000 +2 3.95
70 1000 +2 5.33
80 1000 +2 6.91
90 1000 +2 8.70
100 1000 +2 10.70
150 1000 +2 23.76
200 1000 +2 41.96



Please contact us and ask for special dimensions.

Typical Application

Automobile Industry

Household Appliance

Aerospace

FAQ:

Whether to provide the sample and the delivery time of the sample ?

We can provide a sample of 3kg in stock within 5 working days.

Q1

Can you provide customized services?

Yes, all our raw materials can be customized, such as adding glass fiber, carbon fiber and other fillers, or making boards and rods of different sizes. Click for details to learn more>>

Q2

Can you provide the quality certificate of the products?

Of course. All of our products are proven to be perfectly compliant with FDA, REACH and RoHS safety regulatory, and so on. If you need, you can contact us to check the relevant documents.

Q3

Are you manufacturer or trading company?

We are integral part of industry and trade. Both the agency of some products, but also a factory for product development and production.

Q4

About bulk order leading time?

It will take about 15~30 working days from order confirmation to production completion. Specific communication can be coordinated to the time acceptable to both side.
