PEEK Rod

  • 1. High resistance to hydrolysis
  • 2. Outstanding wear resistance
  • 3. Excellent resistance to chemicals
  • 4. Extremely strong and mechanical strength
  • 5. High stiffness and creep resistance

Share this:

Overview :

PEEK (Polyetheretherketone) is a unique semi crystalline, engineering thermoplastic, and usually extruded in sheet and rod. PEEK rod (polyether ether ketone) is an extremely tough, wear resistant plastic, which offering superior mechanical bearing strength, dimensional stability and exceptional chemical resistance. Moreover, PEEK rod has good property retention at continuous super high temperature of 260°C (480°F), and its melting point is about 341°C (646°F). And the main Applications are machined components for the aerospace, electrical and chemical engineering industries.



General Dimensions of PEEK Rod

DIAMETER (mm) LENGTH (mm) TOLERANCE MAX (mm) WEIGHT  (KG/M)
6 1000 +2 0.07
8 1000 +2 0.10
10 1000 +2 0.15
15 1000 +2 0.30
20 1000 +2 0.50
25 1000 +2 0.75
30 1000 +2 1.05
35 1000 +2 1.41
40 1000 +2 1.82
45 1000 +2 2.27
50 1000 +2 2.78
60 1000 +2 3.95
70 1000 +2 5.33
80 1000 +2 6.91
90 1000 +2 8.70
100 1000 +2 10.70
150 1000 +2 23.76
200 1000 +2 41.96



Please contact us and ask for special dimensions.

Typical Application

Automobile Industry

Aerospace

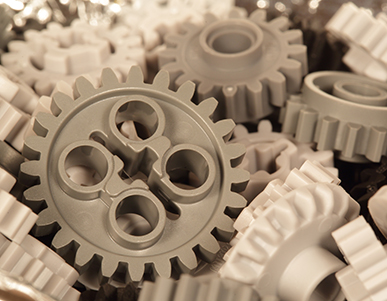

Gears

FAQ:

Whether to provide the sample and the delivery time of the sample ?

We can provide a sample of 3kg in stock within 5 working days.

Q1

Can you provide customized services?

Yes, all our raw materials can be customized, such as adding glass fiber, carbon fiber and other fillers, or making boards and rods of different sizes. Click for details to learn more>>

Q2

Can you provide the quality certificate of the products?

Of course. All of our products are proven to be perfectly compliant with FDA, REACH and RoHS safety regulatory, and so on. If you need, you can contact us to check the relevant documents.

Q3

Are you manufacturer or trading company?

We are integral part of industry and trade. Both the agency of some products, but also a factory for product development and production.

Q4

About bulk order leading time?

It will take about 15~30 working days from order confirmation to production completion. Specific communication can be coordinated to the time acceptable to both side.
