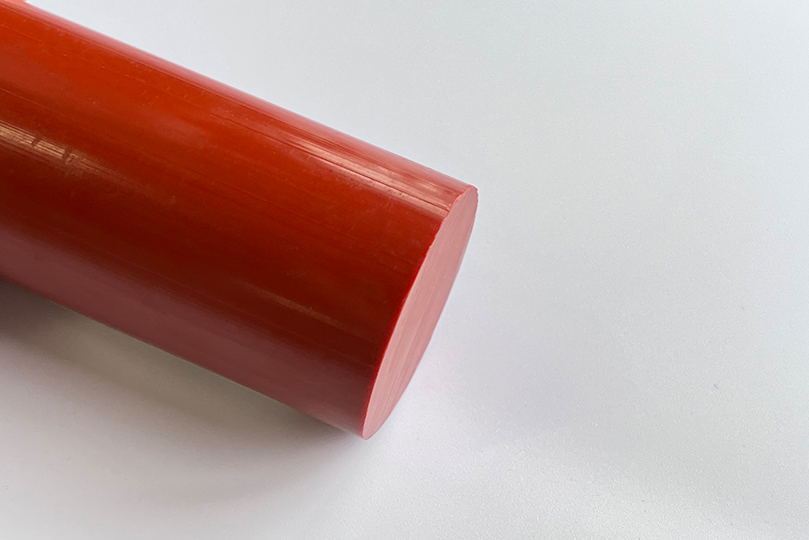

PEEK Rod GF Filled

  • 1. Extremely strong and wear resistant
  • 2. Excellent resistance to creep and dimensional stability
  • 3. Superior resistance to hydrolysis and superheated steam
  • 4. Improved toughness and high stiffness
  • 5. Good chemical resistance and mechanical property
  • 6. Inherent flame retardant

Share this:

Overview :

Glass filled PEEK rod is a kind of glass reinforced PEEK modification product. In relation to unfilled PEEK, this glass fibre reinforced PEEK rod shows increased mechanical strength and high rigidity. Furthermore, the inclusion of glass fibre helps to achieve better creep strength and dimensional stability. Like all the PEEK grades, glass fiber reinforced PEEK has high thermal stability with minimal thermal expansion and very low moisture absorption. Due to these excellent properties, the material of glass fiber reinforced PEEK rod is suitable for machined parts for electrical, aerospace and chemical engineering industries.



General Dimensions of PEEK Rod GF Filled

DIAMETER (mm) LENGTH (mm) TOLERANCE MAX (mm) WEIGHT  (KG/M)
6 1000 +2 0.07
8 1000 +2 0.10
10 1000 +2 0.15
15 1000 +2 0.30
20 1000 +2 0.50
25 1000 +2 0.75
30 1000 +2 1.05
35 1000 +2 1.41
40 1000 +2 1.82
45 1000 +2 2.27
50 1000 +2 2.78
60 1000 +2 3.95
70 1000 +2 5.33
80 1000 +2 6.91
90 1000 +2 8.70
100 1000 +2 10.70
150 1000 +2 23.76
200 1000 +2 41.96



Please contact us and ask for special dimensions.

Typical Application

Automobile Industry

Aerospace

Household Appliance

FAQ:

Whether to provide the sample and the delivery time of the sample ?

We can provide a sample of 3kg in stock within 5 working days.

Q1

Can you provide customized services?

Yes, all our raw materials can be customized, such as adding glass fiber, carbon fiber and other fillers, or making boards and rods of different sizes. Click for details to learn more>>

Q2

Can you provide the quality certificate of the products?

Of course. All of our products are proven to be perfectly compliant with FDA, REACH and RoHS safety regulatory, and so on. If you need, you can contact us to check the relevant documents.

Q3

Are you manufacturer or trading company?

We are integral part of industry and trade. Both the agency of some products, but also a factory for product development and production.

Q4

About bulk order leading time?

It will take about 15~30 working days from order confirmation to production completion. Specific communication can be coordinated to the time acceptable to both side.
